ICF: The Carbon Underdog in Wall Systems
Insulated concrete forms (ICFs) rarely make headlines in the embodied-carbon debate, yet EPS-foam shells filled with concrete can land a surprisingly low footprint and deliver energy bills that make heat-pump ads look jealous. We unpack why—and compare three heavyweight brands head-to-head on carbon, recyclate, and R-value.
Why ICFs Fly Under the Radar
Wood, steel, mass-timber, repeat. That’s the typical script when carbon accountants weigh structural options. ICFs often get left off the call sheet because builders still see them as niche. New field measurements show otherwise: homes in Oklahoma built with ICF walls used up to 41 % less electricity and 5 % less gas over 12 months than comparable wood-frame models (Ghosh & Bigelow, 2025).
What Sits Inside an ICF Block
Think of an ice-cream sandwich: two EPS panels clasp a concrete core. Plastic webs lock everything in place and double as furring strips. Carbon math hinges on four levers:
- Cement type and replacement rate in the core
- Recycled versus virgin polypropylene in the webs
- Density and thickness of EPS skins
- Shipping distance from plant to site (often 500 mi or less for US brands, ICFMA, 2025)
BuildBlock — Lean Core, Recycled Webs
- Concrete core widths start at 4 in., shaving about 8 % cement mass compared with the 6 in. industry default.
- Webs use 38 % post-industrial PP by weight (BuildBlock Tech Sheet, 2024).
- Published blower-door data shows ACH50 as low as 0.59 for a 2,300 ft² test home (IBHS Lab, 2024).
Result: a cradle-to-gate global warming potential (GWP) of roughly 28 kg CO₂e per ft² of wall, based on ecoinvent v3.10 mixes and 30 % SCM cement substitution.
Nudura — Insulation First, Carbon Follows
- Standard block hits R-23.6; XR35 and Plus Series push to R-48 with extra foam (Nudura Data Sheet, 2025).
- EPS accounts for up to 55 % of total mass, so selecting plant-supplied 25 % recycled EPS trims GWP by ~3 kg CO₂e / ft².
- Webs remain virgin PP today, a missed carbon trick.
Modeled GWP lands near 31 kg CO₂e per ft² for an XR35 wall because the thicker foam offsets cement savings only partially.
Fox Blocks — Polypropylene Upcycling in Action
- Webs are 100 % recycled PP and represent 12 % of block mass (Fox Blocks FAQ, 2025).
- EPS skins stay at the classic 2.625 in. each side, good for R-22 whole-wall.
- Company pilots Type IL cement with 8 % limestone addition across two US plants; early LCA runs show a 9 % lower core emissions than GU cement (Airlite Plastics Pilot LCA, 2024).
Combined moves pin GWP at 26 kg CO₂e per ft².
The Numbers, Side by Side
| Brand | Core width (in.) | Recycled PP web | Modeled GWP (kg CO₂e / ft²) | Nominal R-value |
|---|---|---|---|---|
| BuildBlock | 4 or 6 | 38 % | 28 | 23–24 |
| Nudura XR35 | 6 | 0 % | 31 | 35–48 |
| Fox Blocks | 6 | 100 % | 26 | 22 |
| Estimates assume 30 % SCM replacement, regional grid mix at 0.39 kg CO₂e/kWh, and EPS with 20 % regrind where offered. |
Energy Bills Bring the Payback

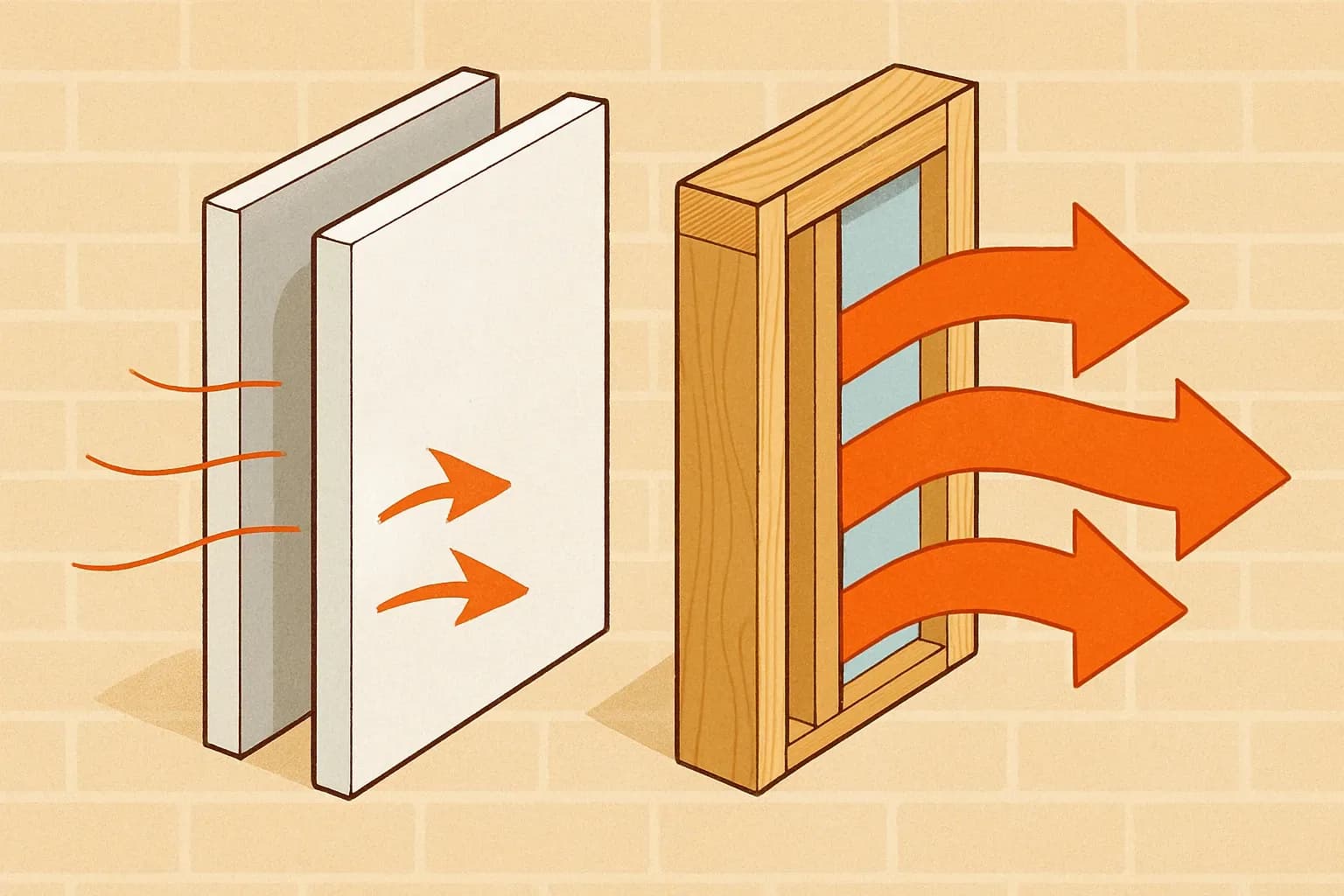

Field monitoring plus thermography confirm ICF walls slash space-conditioning loads by 30-60 % relative to stick-frame (ICFMA Lab Tests, 2024). Using the US average 13 ¢/kWh, a 2,000 ft² ICF-walled home saves about $900 a year. That recurring operational cut neutralizes the 5–8 kg CO₂e fork in embodied carbon between brands within six winters—quick by whole-life-carbon standards.
Your EPD Playbook
- Dig up mix designs. Cement blends vary by plant; locking in SCM percentages early tightens the A1–A3 dataset.
- Document recycled inputs. PP webs and EPS regrind shift the needle by single-digit kilograms but can tip credit thresholds in EC3.
- Pick the right PCR. Most North-American ICF EPDs will nest under "Concrete products for construction" (EN 15804+A2) until an ICF-specific PCR emerges.
Takeaways for Manufacturers
ICF isn’t just a thermal monster; with smart material choices it sneaks under 30 kg CO₂e / ft², rivaling some mass-timber walls. Brands that publish transparent EPDs first will grab spec-sheet real estate and, frankly, win nerdy cocktail party chatter. It’s definately time to step into the spotlight.
Frequently Asked Questions
How much can supplementary cementitious materials trim GWP in ICF cores?
Each 10 % of fly ash or slag replacing portland cement drops core-stage GWP about 5 %, according to NMD averages (2025).
Does adding thicker EPS always raise embodied carbon?
Not always. If the EPS contains at least 25 % recycled content, the operational savings over 30 years can outweigh the extra 2–3 kg CO₂e upfront, especially in heating-dominated climates.
Can a single EPD cover multiple core widths?
Yes—ISO 14025 allows product-group EPDs if variations stay within ±10 % for each impact indicator, but check your Program Operator’s guidance first.
Which life-cycle stages matter most for ICF walls?
Stages A1–A3 dominate, contributing 80-90 % of total GWP; transport (A4) is modest because blocks nest for shipping, and on-site impacts (A5) are minimal compared with cast-in-place concrete.
